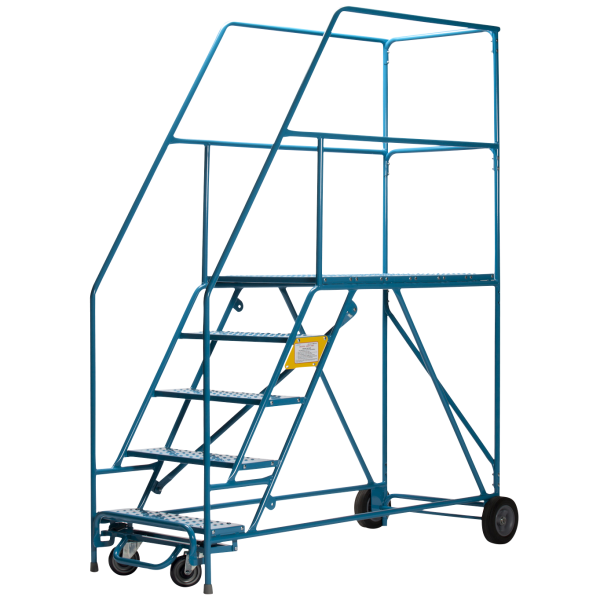

Rolling Work Platforms
SKU # Print this page
Description
High quality rolling work platforms ladder.
- 42″ long top platform
- 300 lbs capacity
- All steel – bolt together design
- All components are replaceable
- Perforated tread design prevents slipping

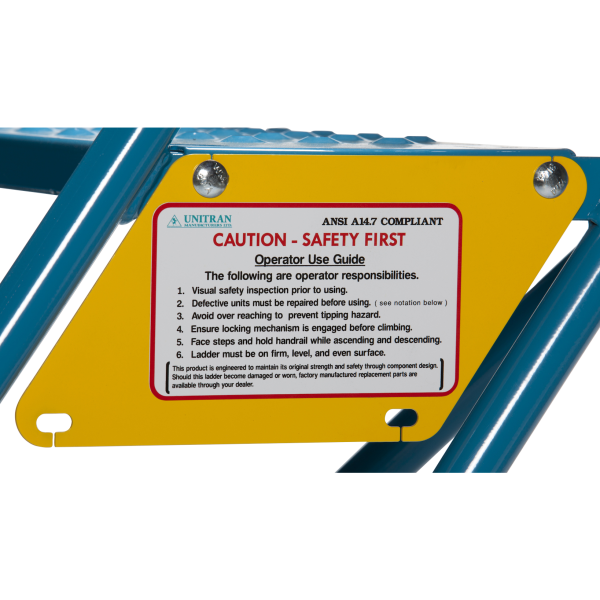

- ANSI and OSHA Compliant
- Detailed use and maintenance instructions are sent with each ladder
- Powder coated finish
Brake Systems
- Models without lock roll “wheelbarrow” style
- Models with lock roll without lifting required
- Positive locking system with manual release on locking models
Downloads
- WP3-42 Parts U-1836
- WP3-42 DIMENSIONS
- WP3-42L Parts U-1837
- WP3HR-42 Parts U-1838
- WP3HR-42 DIMENSIONS
- WP3HR-42L Parts U-1839
- WP4-42 Parts U-1840
- WP4-42 DIMENSIONS
- WP4-42L Parts U-1841
- WP4HR-42 Parts U-1842
- WP4HR-42 DIMENSIONS
- WP4HR-42L Parts U-1843
- WP5HR-42 Parts U-1844
- WP5HR-42 DIMENSIONS
- WP5HR-42L Parts U-1845
Overview
| Model Number | No. of Steps |
Platform Height |
Working Height |
Hand Rail | Lock | Overall Length |
Overall Height |
Overall Width |
| WP3-42 | 3 | 2′ 3″ | 7′ 9″ | NO | NO | 4′ 8″ | 2′ 3″ | 31″ |
| WP4-42 | 4 | 3′ 0″ | 8′ 6″ | NO | NO | 5′ 1″ | 3′ 0″ | 31″ |
| WP3HR-42 | 3 | 2′ 3″ | 7′ 9″ | YES | NO | 4′ 9″ | 5′ 9″ | 31″ |
| WP4HR-42 | 4 | 3′ 0″ | 8′ 6″ | YES | NO | 5′ 2″ | 6′ 4″ | 31″ |
| WP5HR-42 | 5 | 3′ 9″ | 9′ 3″ | YES | NO | 5′ 8″ | 7′ 3″ | 31″ |
| WP3-42L | 3 | 2′ 3″ | 7′ 9″ | NO | YES | 4′ 8″ | 2′ 3″ | 31″ |
| WP4-42L | 4 | 3′ 0″ | 8′ 6″ | NO | YES | 5′ 1″ | 3′ 0″ | 31″ |
| WP3HR-42L | 3 | 2′ 3″ | 7′ 9″ | YES | YES | 4′ 9″ | 5′ 9″ | 31″ |
| WP4HR-42L | 4 | 3′ 0″ | 8′ 6″ | YES | YES | 5′ 2″ | 6′ 4″ | 31″ |
| WP5HR-42L | 5 | 3′ 9″ | 9′ 3″ | YES | YES | 5′ 8″ | 7′ 3″ | 31″ |
